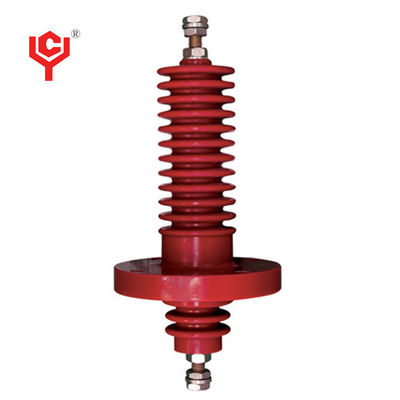

Product Details:
|
| Name: | Dry-type Transformer Epoxy Resin Bushing Insulator | Dimensions: | Customer Required |
|---|---|---|---|
| Thread: | As Per Standard And Customized | Tensile Strength: | 10.4Mpa |
| Material: | Epoxy Resin | Design: | According To Customer's Requirement |
| Color: | Red | Brand Name: | Hebei Maier |
| Highlight: | 600A Epoxy Resin Bushing,10.4Mpa Epoxy Resin Bushing,Dry Type Transformer Bushing Insulator |
||
In electric power, a bushing is an insulated device that allows an electrical conductor to pass safely through a grounded conducting barrier such as the case of a transformer or circuit breaker.
Bushings are consisting of current carrying part of conducting rod in the center, bus or cable, a porcelain cylinder installed in a hole in a transformer cover and used for isolating the current carrying part.
| Code | Type-Voltage/Current(KV/A) | Dimensions(mm) | Lid opening | |||||
| d1 | d2 | d3 | d4 | t1 | t2 | |||
| 1YC.286.301 | FTG1-1/400 | 18 | 43 | 45 | 70 | 10 | 10 | Ф48 |
| 1YC.286.302 | FTG1-1/600 | 26 | 43 | 45 | 70 | 10 | 10 | Ф48 |
| 1YC.286.303 | FTG1-1/1000 | 32 | 51 | 55 | 90 | 10 | 10 | Ф58 |
| 1YC.286.304 | FTG1-1/1600 | 40 | 60 | 70 | 98 | 12 | 12 | Ф73 |
| 1YC.286.305 | FTG1-1/2000 | 45 | 60 | 70 | 98 | 15 | 15 | Ф73 |
| 1YC.286.306 | FTG1-1/3150 | 48 | 60 | 70 | 98 | 18 | 18 | Ф73 |
Application
Electrical energy, electrical installation, power transmission and distribution.
Salient Features of Epoxy Bushing
Our services
FAQ
Q1: What is your MOQ?
A: Our MOQ is 1 piece.
Q2: Do you offer sample?
A: Yes, we can provide you a sample.
Q3: What is your payment term?
A: 100% TT in advance.
Q4: What is your lead time?
A: 3-10 work days after order confirmed. Urgent need please discuss with us to find a way out!
Q5: Are you a manufacturer or a trader?
A: We are a manufacturer and all the items mentioned are made by ourselves. We have our own sales team to provide you the best export service too.
Q6: Can you make the packing and logo as customer request?
A: Yes we can.
