|Name:||Power Transformer Part Anti-Explosion Dehydrating Breather With Silica Gel||Transformer Type:||Power Transformer|
|Usage:||Moisture Absorber||Silica Gel Color:||White, Blue Or Orange|
|Connection Type:||Flange||Flange Type:||Round Flange / Square Flange|
3150KVA Power Transformer Parts,
EN 50216-5 Power Transformer Parts,
460mm Power Transformer Breather
Construction of Silica Gel Breather

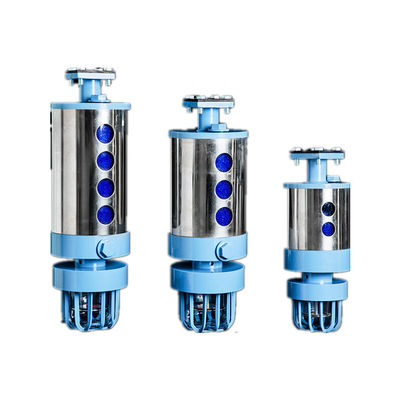

The silica gel breather of transformer is very simple in the aspect of design. It is nothing but a pot of silica gel through which, air passes during breathing of transformer. The silica gel is a very good absorber of moisture. Freshly regenerated gel is very efficient, it may dry down air to a dew point of below -40oC. A well maintained silica gel breather will generally operate with a dew point of -35oC as long as a large enough quantity of gel has been used. The picture shows a silica gel breather of transformer.
Silica gel crystal has tremendous capacity of absorbing moisture. When air passes through these crystals in the breather; the moisture of the air is absorbed by them. Therefore, the air reaches to the conservator is quite dry, the dust particles in the air get trapped by the oil in the oil seal cup. The oil in the oil sealing cup acts as barrier between silica gel crystal and air when there is no flow of air through silica gel breather. The color of silica gel crystal is dark blue but, when it absorbs moisture; it becomes pink.
When there is sufficient difference between the air inside the conservator and the outside air, the oil level in two components of the oil seal changes until the lower oil level just reaches the rim of the inverted cup, the air then moves from high pressure compartment to the low pressure compartment of the oil seal. Both of these happen when the oil acts as core filter and removes the dust from the outside air.
Q1: What is your MOQ?
A: Our MOQ is 1 piece.
Q2: Do you offer sample?
A: Yes, we can provide you a sample.
Q3: What is your payment term?
A: 100% TT in advance.
Q4: What is your lead time?
A: 3-10 work days after order confirmed. Urgent need please discuss with us to find a way out!
Q5: Are you a manufacturer or a trader?
A: We are a manufacturer and all the items mentioned are made by ourselves. We have our own sales team to provide you the best export service too.
Q6: Can you make the packing and logo as customer request?
A: Yes we can.
